Bringing you another new product release from Allen's Offroad.
$1949.00 shipped in the lower 48 US. Cali residents add 7.5% sales tax. Click on any image to see available options.
Fathers Day Special Save $50.00 (makes it free shipping). Coupon code "DV8D4450" at checkout.
The DV8 Offroad MR Series Dana 44 Replacement Axle Housing is one of the best upgrades that any hardcore wheeler can make. The stock Dana 44 that comes on Rubicon models is prone to bending, and in some extreme cases, breaking when running 35"+ tires and doing any kind of off road driving. If you have a bent axle, or bent axle C's, then you'll notice that your Jeep handles differently on the road. You may also notice negative camber (when your tires are closer at the top than the bottom).
With the DV8 Offroad MR Series front axle you'll no longer have to baby your jeep when hitting bumps or crawling on the rocks. With almost 1/2" thick tubing and much beefier C's, you can wheel with more confidence, knowing that you wont be stranded from an axle housing failure.

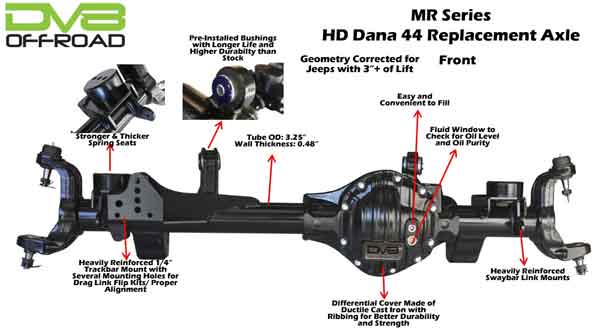

Details:
Ductile Cast Iron with Increased Gusseting
3.25" Wide .48" Wall Tubes
Stronger and Thicker Spring Seats

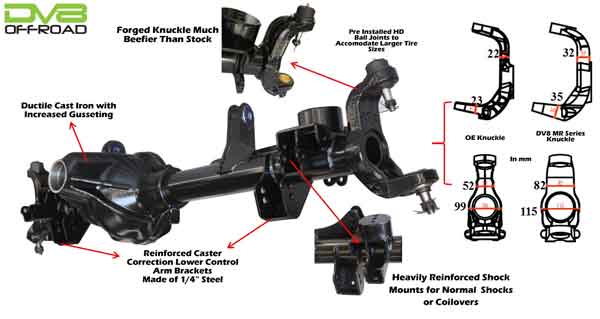

Forged Inner "C" much wider and thicker than OE

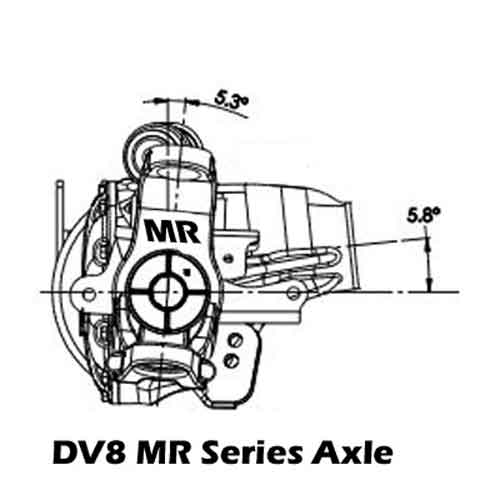

Geometry Correction For 3"+ Lift Height (5.3 deg caster- 5.8 deg pinion)
Reinforced 1/4" LCA Brackets
Pre-Installed High Quality HD Ball Joints
Heavily Reinforced 1/4" Trackbar Mount
(serveral mounting holes for draglink flip kits/proper alignment)
Reinforced Shock/Coilover Mounts
HD Reinforced Swaybar Link Mounts
HD Ductile Iron Diff Cover - Ribbed for Strength
Easy to Fill Oil Plug Location
Fluid Window to Check for Level/Contamination
List of Compatible Lockers:
Rubicon (30 Spline) #68017176AA - Reuse factory or aftermarket 30 spline shafts
ARB (35 Spline) #RD157 - Requires aftermarket 35 spline shafts
OX Locker (35 Spline) D-44-JKR-35 -Requires aftermarket 35 spline shafts
OX Locker (30 Spline) D44-JKR-30 -Reuse factory or aftermarket 30 spline shafts
Download DV8 Offroad Axle Warraty PDF Here.
Notes:
* All additional parts are shipped seperately and are not installed.
* Installing aftermarket 35 spline shafts will require a larger inner axle seal. The seal can also be purchased from many auto parts warehouses using part number SKF15518. Factory style inner seal kits can be found under Mopar part number 5014852AB.
* Slight modifications may need to be made to the differential cover in order to clear the stock tie rod. If there is contact between the tie rod and diff cover the installer may need to shave off a slight amount of metal from some of the differential cover heatsink fins.
$1949.00 shipped in the lower 48 US. Cali residents add 7.5% sales tax. Click on any image to see available options.
Fathers Day Special Save $50.00 (makes it free shipping). Coupon code "DV8D4450" at checkout.
The DV8 Offroad MR Series Dana 44 Replacement Axle Housing is one of the best upgrades that any hardcore wheeler can make. The stock Dana 44 that comes on Rubicon models is prone to bending, and in some extreme cases, breaking when running 35"+ tires and doing any kind of off road driving. If you have a bent axle, or bent axle C's, then you'll notice that your Jeep handles differently on the road. You may also notice negative camber (when your tires are closer at the top than the bottom).
With the DV8 Offroad MR Series front axle you'll no longer have to baby your jeep when hitting bumps or crawling on the rocks. With almost 1/2" thick tubing and much beefier C's, you can wheel with more confidence, knowing that you wont be stranded from an axle housing failure.
Details:
Ductile Cast Iron with Increased Gusseting
3.25" Wide .48" Wall Tubes
Stronger and Thicker Spring Seats
Forged Inner "C" much wider and thicker than OE
Geometry Correction For 3"+ Lift Height (5.3 deg caster- 5.8 deg pinion)
Reinforced 1/4" LCA Brackets
Pre-Installed High Quality HD Ball Joints
Heavily Reinforced 1/4" Trackbar Mount
(serveral mounting holes for draglink flip kits/proper alignment)
Reinforced Shock/Coilover Mounts
HD Reinforced Swaybar Link Mounts
HD Ductile Iron Diff Cover - Ribbed for Strength
Easy to Fill Oil Plug Location
Fluid Window to Check for Level/Contamination
List of Compatible Lockers:
Rubicon (30 Spline) #68017176AA - Reuse factory or aftermarket 30 spline shafts
ARB (35 Spline) #RD157 - Requires aftermarket 35 spline shafts
OX Locker (35 Spline) D-44-JKR-35 -Requires aftermarket 35 spline shafts
OX Locker (30 Spline) D44-JKR-30 -Reuse factory or aftermarket 30 spline shafts
Download DV8 Offroad Axle Warraty PDF Here.
Notes:
* All additional parts are shipped seperately and are not installed.
* Installing aftermarket 35 spline shafts will require a larger inner axle seal. The seal can also be purchased from many auto parts warehouses using part number SKF15518. Factory style inner seal kits can be found under Mopar part number 5014852AB.
* Slight modifications may need to be made to the differential cover in order to clear the stock tie rod. If there is contact between the tie rod and diff cover the installer may need to shave off a slight amount of metal from some of the differential cover heatsink fins.
